Venezia Marine 4 Channel Amplifier 4x270W

Hertz VENEZIAV4

Name: Venezia Marine 4 Channel Amplifier 4x270W
Brand: Hertz
SKU: VENEZIAV4
Price: 1149.99 CAD
Availability: InStock

Venezia Marine 4 Channel Amplifier 4x270W

We offer Free Shipping for this product if it's over $100

In stock, ready to ship

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,149.99$1,359.99

Sale: - C$210.00 off

C$1,149.99

Venezia V4 is the most-powerful four-channel Hertz marine amplifier ever, featuring 160 W x 4 (4Ω) and 580 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification!

High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V4 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.

ADC (Advanced D-Class) Technology 2Ω (1Ω for mono models) stable output stage providing Hi-Res certified audio performance with superior efficiency.

Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.

Balanced fully-differential input circuitry to reject electromagnetic disturbances.

Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

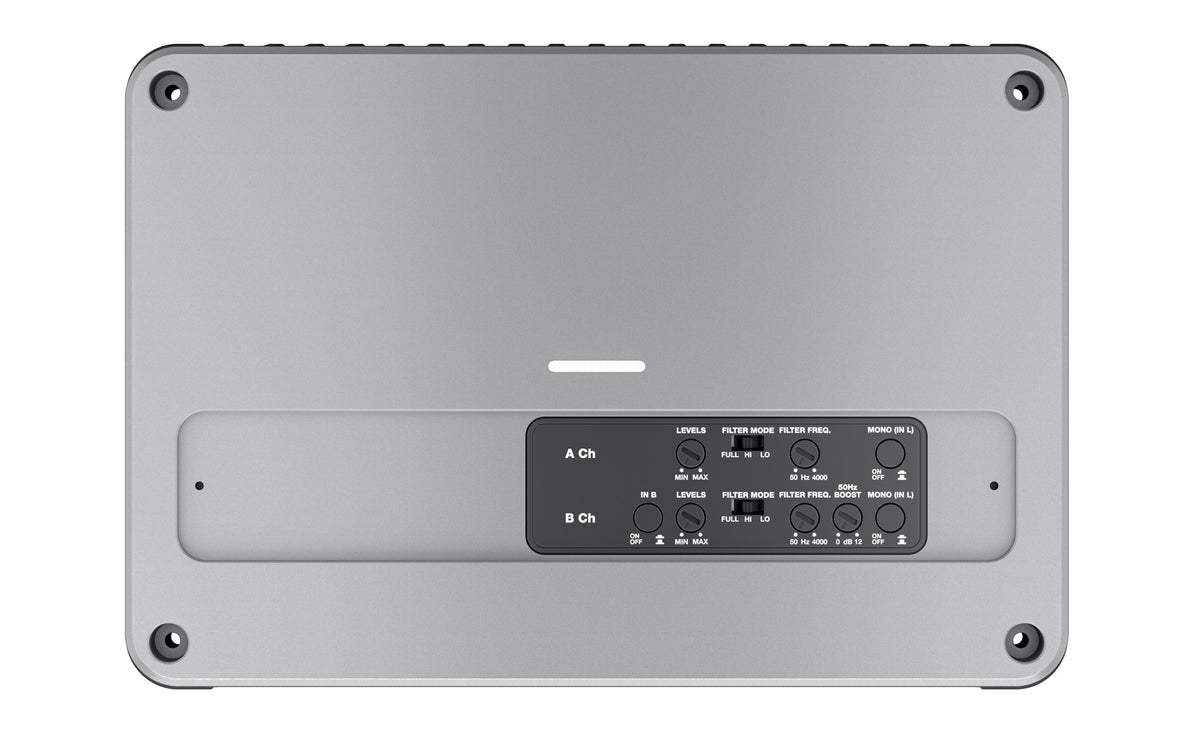

Built-in filter section protected by a polycarbonate panel suitable for any system configuration.

Short-circuit, overload, and thermal protections with auto-resetting.

Plug&Play Input and Output connections with safe-lock.

Proprietary Plug&Play Power Supply Connector with safe-lock.

-->

-General Specs-
Channels	4 - 3 - 2
-POWER SUPPLY-
Power supply voltage	9 ÷ 16 VDC
ldling current (power ON/OFF):	1.6A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power):	48 A
Remote In:	7 ÷ 15 VDC - 1 mA
-AMPLIFIER STAGE-
Distorsion - THD (100Hz @ 4Ω):	<0,06%
Bandwidth:	10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V):	102 dBA
Damping factor (100Hz @ 4Ω)	130
Pre-ln sensitivity:	0.2 ÷ 5 VRMS
Pre-ln impedance:	10kΩ
Load impedance (MIN) @4Ch: @3Ch: @2Ch:	2 Ω 2 Ω + 2 Ω + 4 Ω 4 Ω
Adjustable Crossovers	yes
-Output Power-
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
4Ch	160 W x 4 (4Ω)
4Ch	290 W x 4 (2Ω)
3Ch	160 W x 2 (4Ω) + 580 W x 1 (4Ω)
3Ch	290 W x 2 (2Ω) + 580 W x 1 (4Ω)
2Ch	580 W x 2 (4Ω)
Total Power	1160 W
-INPUTS / FILTERS-
lnputs:	PRE IN
Pre Out	Full range
A Ch:
A Ch. MONO (on/off):	Yes
By-pass:	Yes (Full)
Hi-Pass :	50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass:	50 ÷ 4k Hz @ 12dB/Oct
B Ch:	Yes
B Ch. MONO (on/off):	Yes
By-pass:	Yes (Full)
Hi-Pass:	50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass:	50 ÷ 4k Hz 12@ dB/Oct
Bass boost 50 Hz (adjust):	(0 ÷ 12) dB
-Physical Specs-
	mm	in
A	270	10.63
B	240	9.45
C	185	7.28
D	155	6.10
E	54	2.12
Weight	kg	lb
	2.66	5.77

Features:

Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.

ADC (Advanced D-Class) Technology 2Ω (1Ω for mono models) stable output stage providing Hi-Res certified audio performance with superior efficiency.

Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.

Balanced fully-differential input circuitry to reject electromagnetic disturbances.

Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

Built-in filter section protected by a polycarbonate panel suitable for any system configuration.

Short-circuit, overload, and thermal protections with auto-resetting.

Plug&Play Input and Output connections with safe-lock.

Proprietary Plug&Play Power Supply Connector with safe-lock.

-General Specs-
Channels	4 - 3 - 2
-POWER SUPPLY-
Power supply voltage	9 ÷ 16 VDC
ldling current (power ON/OFF):	1.6A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power):	48 A
Remote In:	7 ÷ 15 VDC - 1 mA
-AMPLIFIER STAGE-
Distorsion - THD (100Hz @ 4Ω):	<0,06%
Bandwidth:	10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V):	102 dBA
Damping factor (100Hz @ 4Ω)	130
Pre-ln sensitivity:	0.2 ÷ 5 VRMS
Pre-ln impedance:	10kΩ
Load impedance (MIN) @4Ch: @3Ch: @2Ch:	2 Ω 2 Ω + 2 Ω + 4 Ω 4 Ω
Adjustable Crossovers	yes
-Output Power-
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
4Ch	160 W x 4 (4Ω)
4Ch	290 W x 4 (2Ω)
3Ch	160 W x 2 (4Ω) + 580 W x 1 (4Ω)
3Ch	290 W x 2 (2Ω) + 580 W x 1 (4Ω)
2Ch	580 W x 2 (4Ω)
Total Power	1160 W
-INPUTS / FILTERS-
lnputs:	PRE IN
Pre Out	Full range
A Ch:
A Ch. MONO (on/off):	Yes
By-pass:	Yes (Full)
Hi-Pass :	50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass:	50 ÷ 4k Hz @ 12dB/Oct
B Ch:	Yes
B Ch. MONO (on/off):	Yes
By-pass:	Yes (Full)
Hi-Pass:	50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass:	50 ÷ 4k Hz 12@ dB/Oct
Bass boost 50 Hz (adjust):	(0 ÷ 12) dB
-Physical Specs-
	mm	in
A	270	10.63
B	240	9.45
C	185	7.28
D	155	6.10
E	54	2.12
Weight	kg	lb
	2.66	5.77
