8" Active Subwoofer Box With Double Passive Radiators

Hertz DBA201

Name: 8" Active Subwoofer Box With Double Passive Radiators
Brand: Hertz
SKU: DBA201
Price: 449.99 CAD
Availability: InStock

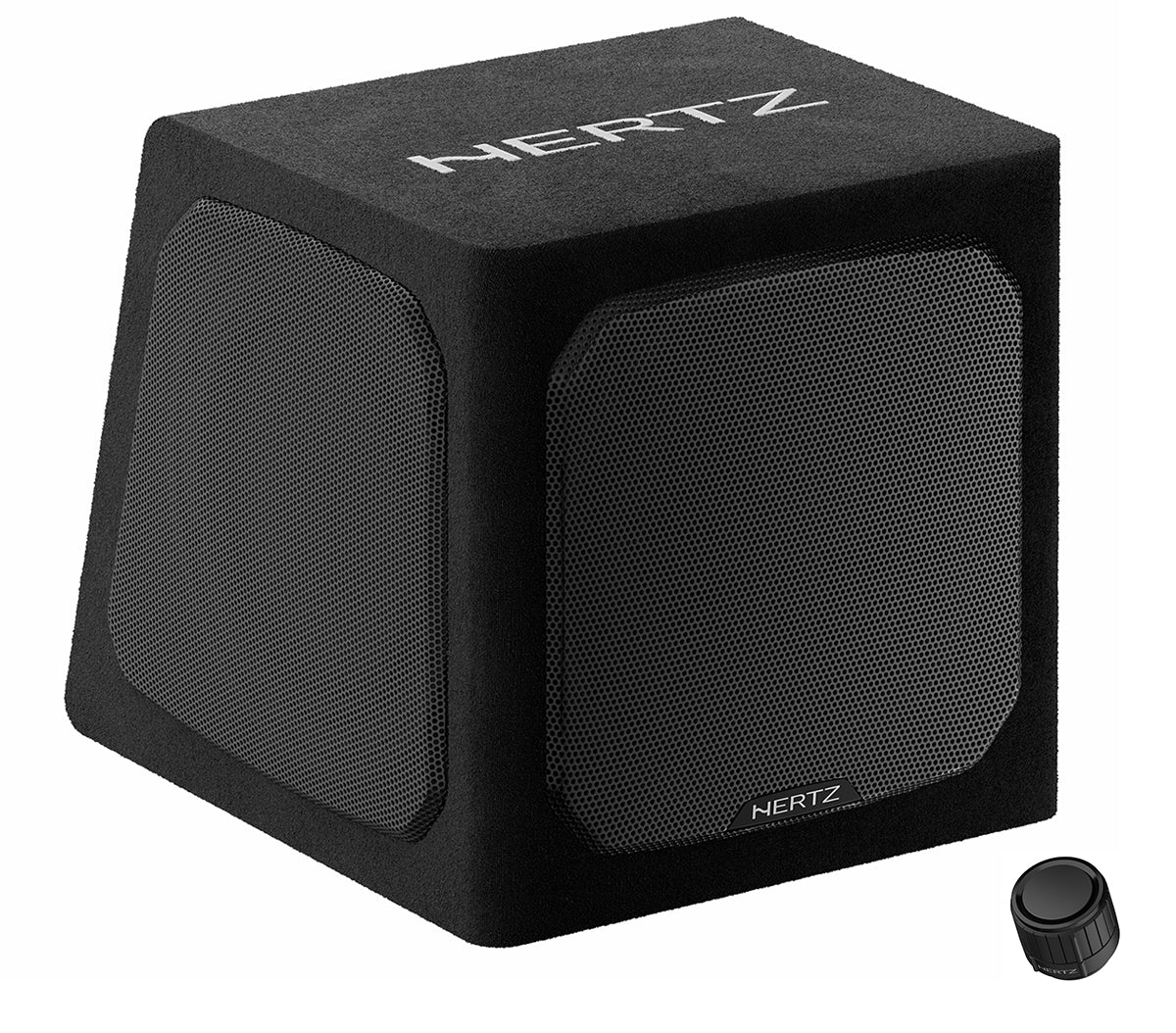

8" Active Subwoofer Box With Double Passive Radiators

We offer Free Shipping for this product if it's over $100

In stock, ready to ship

.price-ui--loading { display: block !important; opacity: 1 !important; }

$449.99$499.99

Sale: - C$50.00 off

C$449.99

High performance in a compact stylish design

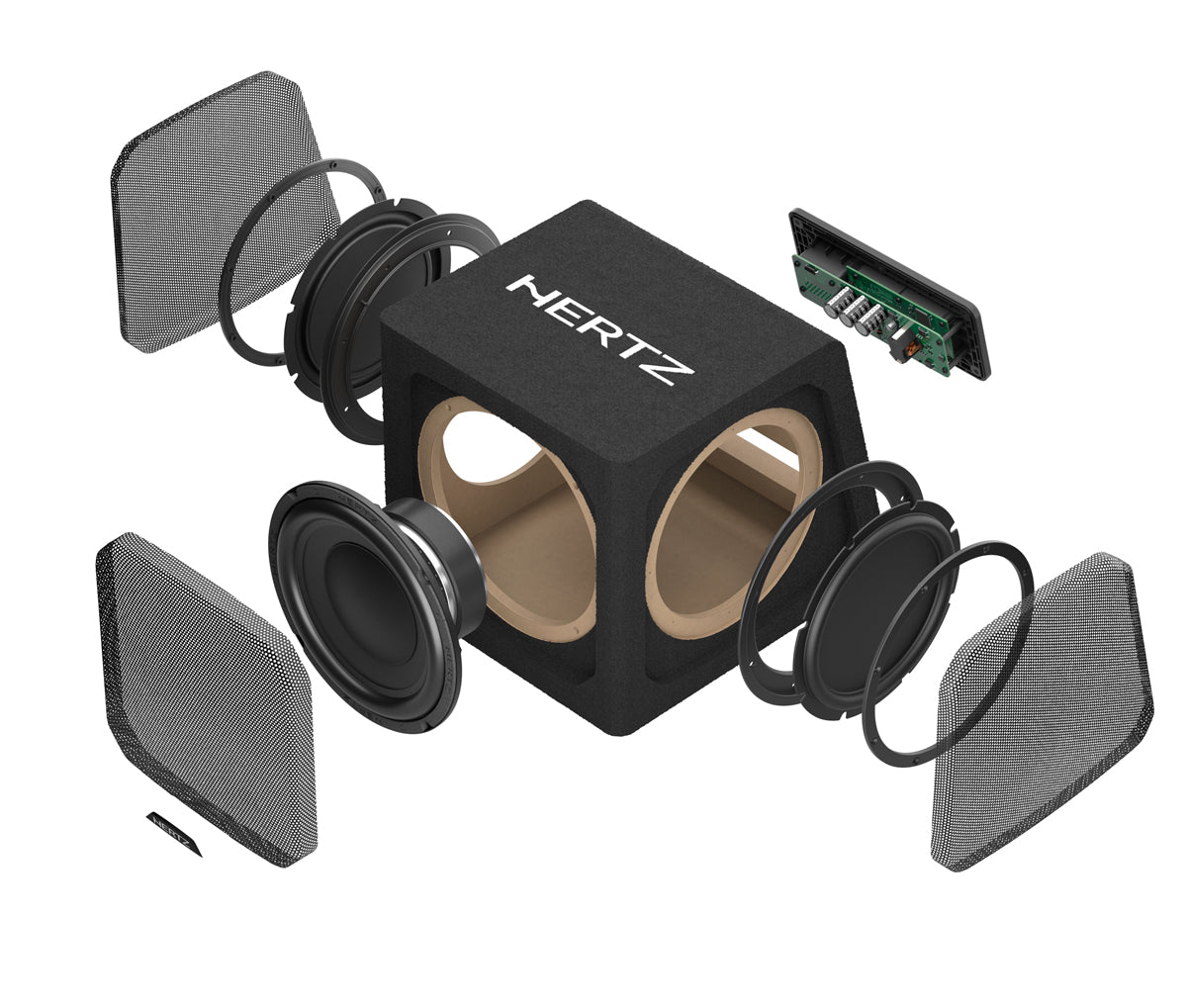

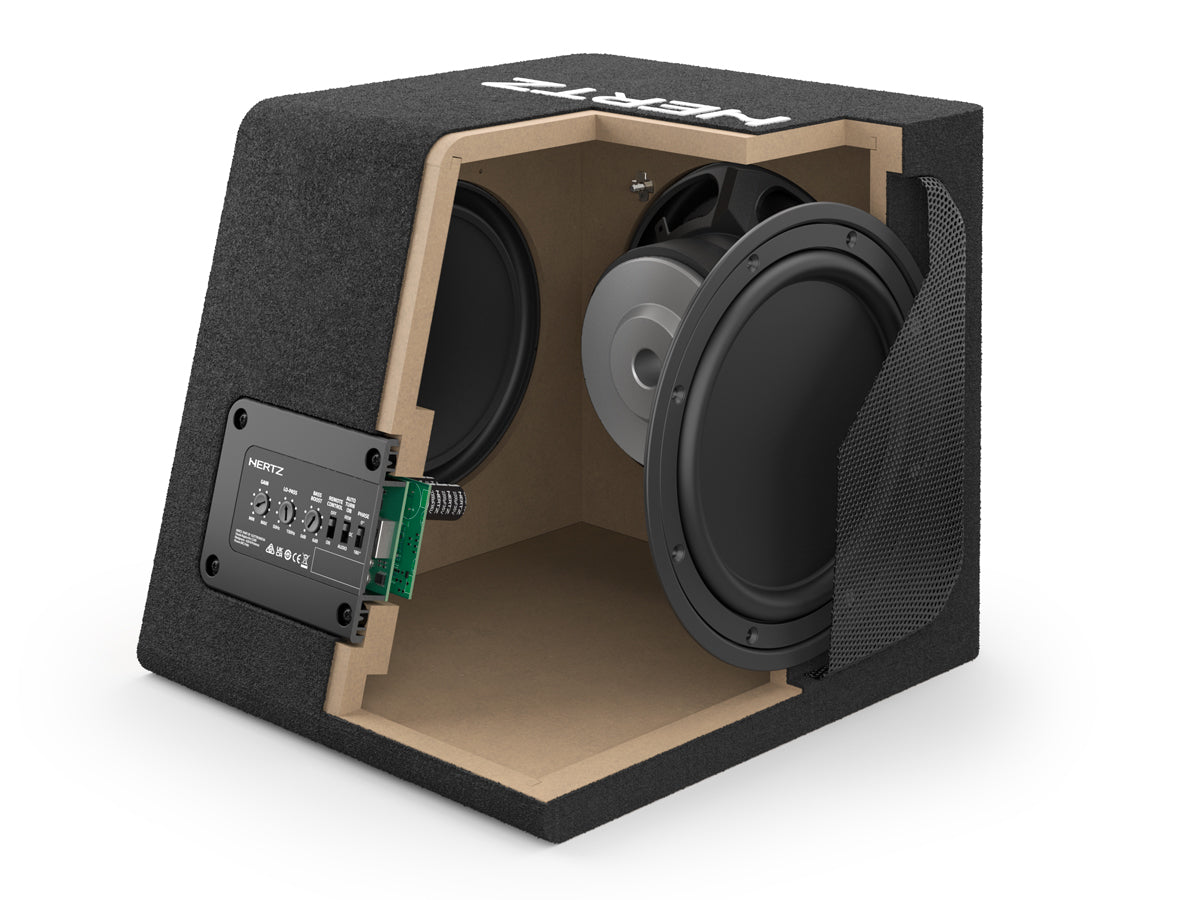

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

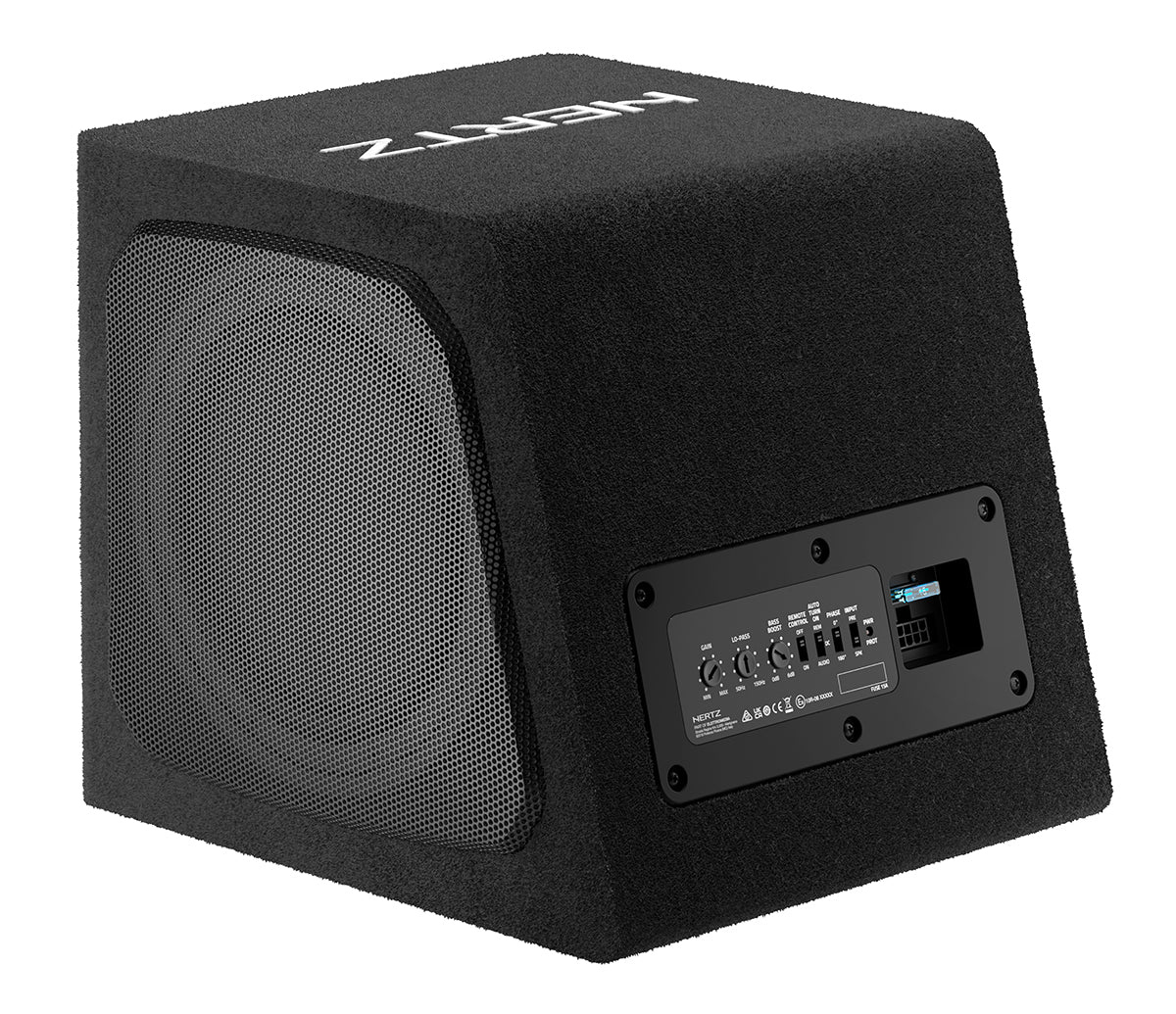

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

Size mm (in.)	200 (8)
Power Handling - Continuous W	220
Power Handling - Peak W	440
Impedance Ohm	0.4
Design	Active subwoofer box with double passive radiators
Voice Coil Ø	38.6 (1.52) mm (in.)
Frequency Response Hz	32 ÷ 400
Magnet size D x d x h mm (in.)	115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.)	6.7 (10.54)
Magnet	High Density Flux Ferrite
Cone	Pressed paper
Voice Coil Type	Copper
Operating voltage VDC (Fuse)	6.5 ÷ 18 (15A)
Start - Stop voltage VDC	6
Idling current A (Power OFF)	260 m (1 m)
Consumption @ 14,4 VDC Max musical power A	8.5
Remote IN Turn on VDC (Current)	4 (1 mA)
PRE input signal Turn ON VRMS	10 mV
SPK input DC Turn ON VDC	2
Distortion - THD @ 100 Hz %	0.15
Bandwidth Hz	15 - 150
S/N ratio dBA	100
Output power (RMS) @ 14,4 VDC, 1% THD W	220

High performance in a compact stylish design

Extra full set of controls to fine-tune the in-car performance

Auto turn-on and standby mode

The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.

Size mm (in.)	200 (8)
Power Handling - Continuous W	220
Power Handling - Peak W	440
Impedance Ohm	0.4
Design	Active subwoofer box with double passive radiators
Voice Coil Ø	38.6 (1.52) mm (in.)
Frequency Response Hz	32 ÷ 400
Magnet size D x d x h mm (in.)	115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.)	6.7 (10.54)
Magnet	High Density Flux Ferrite
Cone	Pressed paper
Voice Coil Type	Copper
Operating voltage VDC (Fuse)	6.5 ÷ 18 (15A)
Start - Stop voltage VDC	6
Idling current A (Power OFF)	260 m (1 m)
Consumption @ 14,4 VDC Max musical power A	8.5
Remote IN Turn on VDC (Current)	4 (1 mA)
PRE input signal Turn ON VRMS	10 mV
SPK input DC Turn ON VDC	2
Distortion - THD @ 100 Hz %	0.15
Bandwidth Hz	15 - 150
S/N ratio dBA	100
Output power (RMS) @ 14,4 VDC, 1% THD W	220

Hertz DBA201

8" Active Subwoofer Box With Double Passive Radiators
