XED Series 1-Channel Monoblock Class-D Amplifier

Cerwin-Vega XED3001D

Name: XED Series 1-Channel Monoblock Class-D Amplifier
Brand: Cerwin-Vega
SKU: XED3001D
Price: 189.99 CAD
Availability: InStock

XED Series 1-Channel Monoblock Class-D Amplifier

We offer Free Shipping for this product if it's over $100

In stock, ready to ship

.price-ui--loading { display: block !important; opacity: 1 !important; }

$189.99$219.99

Sale: - C$30.00 off

C$189.99

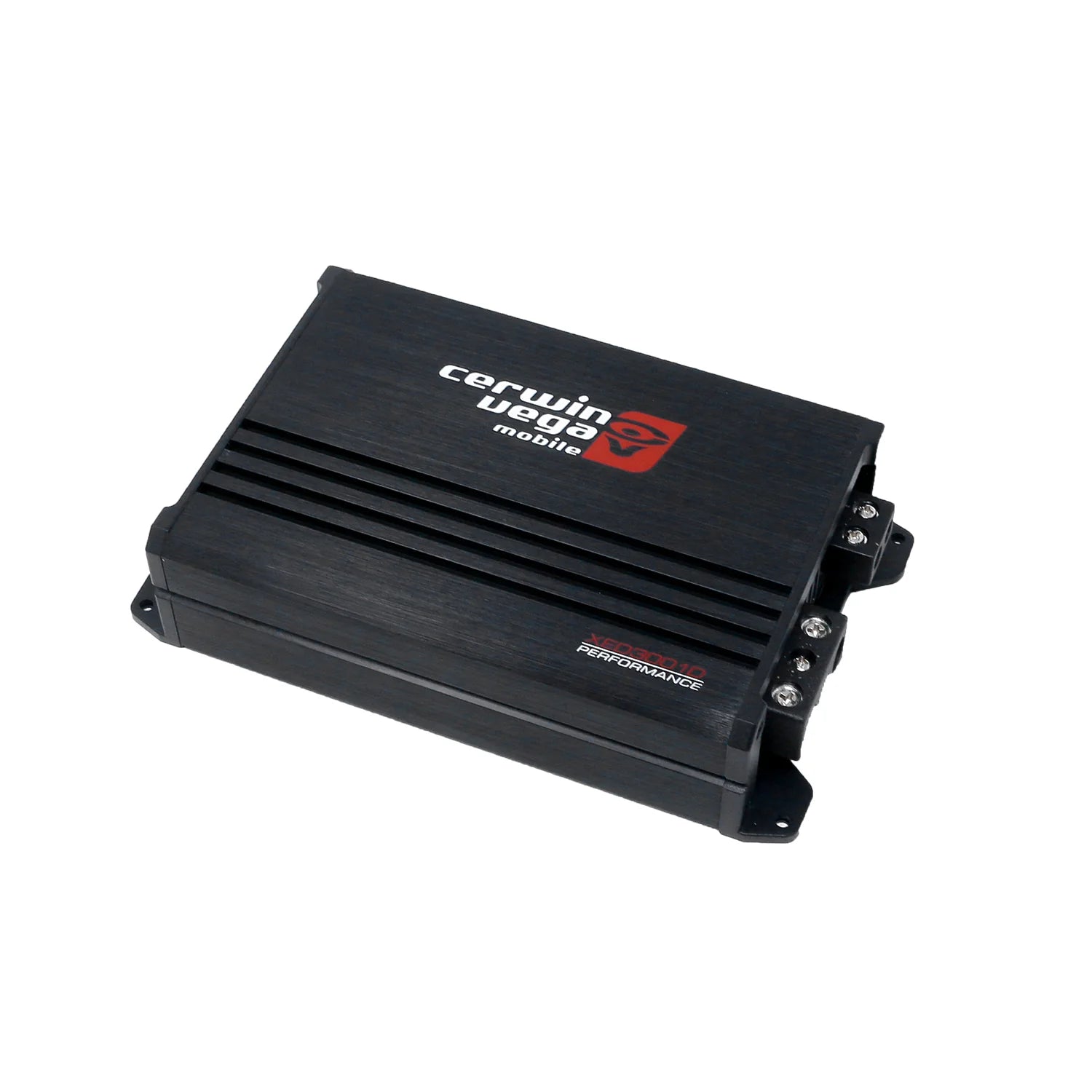

Upgrade your car audio system with the Cerwin-Vega XED3001D XED Series 1-Channel Monoblock Class-D Amplifier, a compact yet powerful amplifier designed to deliver deep, impactful bass and efficient power performance. Built using Cerwin-Vega’s advanced Xtreme Energy Design, the XED3001D provides the ideal combination of reliability, efficiency, and strong low-frequency output for modern car audio systems.

The XED3001D monoblock amplifier is specifically engineered to power subwoofers, delivering focused power that maximizes bass performance while maintaining clean, distortion-free sound. Whether you're upgrading a factory audio system or building a custom aftermarket setup, this amplifier provides the power needed to drive your subwoofer with authority and precision.

Featuring advanced Class-D amplifier technology, the XED3001D offers high efficiency and powerful output while generating minimal heat. This modern amplifier design allows it to deliver strong bass performance without placing excessive demand on your vehicle’s electrical system. The result is consistent, reliable sound quality even during extended listening sessions.

The amplifier is housed in a lightweight aluminum chassis that not only enhances durability but also acts as an effective heat sink to help dissipate heat and maintain optimal operating temperatures. This rugged construction ensures dependable long-term performance while keeping the amplifier compact for flexible installation in a wide variety of vehicles.

Engineered with premium internal components and precision construction, the Cerwin-Vega XED Series amplifiers are designed to handle demanding audio systems with ease. The XED3001D delivers tight bass response, clean signal reproduction, and the dynamic energy that Cerwin-Vega is known for.

Key Features:
• 1-channel monoblock Class-D car audio amplifier
• Designed specifically for high-performance subwoofer systems
• High-efficiency amplifier technology for powerful output
• Lightweight aluminum chassis for superior heat dissipation
• Clean, distortion-free bass reproduction
• Ideal for aftermarket subwoofer upgrades

The Cerwin-Vega XED3001D amplifier delivers the powerful bass performance and efficiency needed to bring your music to life—unleashing the Xtreme Energy and legendary Cerwin-Vega sound on every drive.

Specifications

Power Rating (RMS)

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 200W X 1
RMS POWER PER CHANNEL 2Ω 300W X 1

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (100HZ @4Ω): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

Low Level Input: 250mV-6.0V
High Level Input: 1.1V~>20.0V

Input Impedance

Low Level Input: 20KΩ
High Level Input: 100KΩ

Output Stage

Output Impedance: 2Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-250Hz

Crossover (1-12dB/Oct)

Variable High-Pass:
Variable low-Pass: 35Hz-250Hz

Fuse Rating

ATC: 20A x 2 (Inside)

Dimensions

Length x Width x Height: 6.3”x4.7”x1.8” (160mm x 120mm x 46.5mm)

FEATURES

Bass Boost: 0dB-12dB
LED Power/Protect Light Indicator
Bass Control Included

Specifications

Power Rating (RMS)

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 200W X 1
RMS POWER PER CHANNEL 2Ω 300W X 1

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (100HZ @4Ω): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

Low Level Input: 250mV-6.0V
High Level Input: 1.1V~>20.0V

Input Impedance

Low Level Input: 20KΩ
High Level Input: 100KΩ

Output Stage

Output Impedance: 2Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-250Hz

Crossover (1-12dB/Oct)

Variable High-Pass:
Variable low-Pass: 35Hz-250Hz

Fuse Rating

ATC: 20A x 2 (Inside)

Dimensions

Length x Width x Height: 6.3”x4.7”x1.8” (160mm x 120mm x 46.5mm)

FEATURES

Bass Boost: 0dB-12dB
LED Power/Protect Light Indicator
Bass Control Included

Specifications

Power Rating (RMS)

FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4Ω 200W X 1
RMS POWER PER CHANNEL 2Ω 300W X 1

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (100HZ @4Ω): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

Low Level Input: 250mV-6.0V
High Level Input: 1.1V~>20.0V

Input Impedance

Low Level Input: 20KΩ
High Level Input: 100KΩ

Output Stage

Output Impedance: 2Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-250Hz

Crossover (1-12dB/Oct)

Variable High-Pass:
Variable low-Pass: 35Hz-250Hz

Fuse Rating

ATC: 20A x 2 (Inside)

Dimensions

Length x Width x Height: 6.3”x4.7”x1.8” (160mm x 120mm x 46.5mm)

FEATURES

Bass Boost: 0dB-12dB
LED Power/Protect Light Indicator
Bass Control Included
